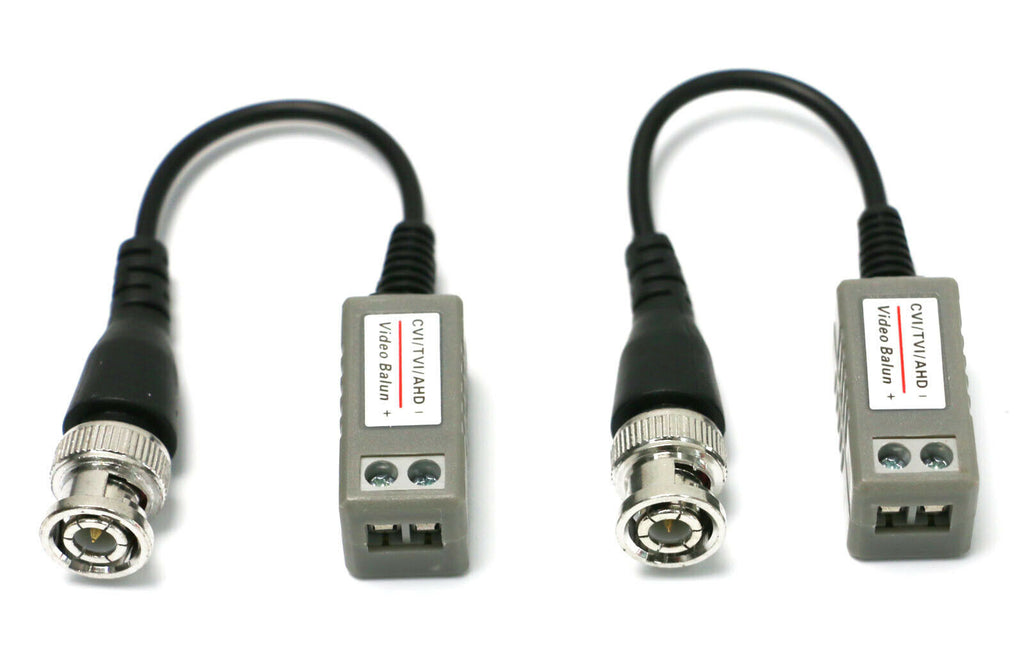

NEW 10 Pair CVI TVI AHD Twisted BNC Passive Video Balun Transceiver CAT5 UTP Adapter

Compatible with all HD-CVI,HD-TVI,HD-AHD
To send HD-CVI,HD-TVI,HD-AHD camera 720p up to 300 meters over UTP cable.
Built-in transient suppression protection
Up to 450m for 720p CVI cameras
Up to 250m for 1080p CVI cameras
Up to 250m for 720P/1080P TVI cameras
Up to 320m for 720P AHD cameras
NTSC,PAL,and SECAM video formats
No power required
Transmission signal: 1 channel
Transmission distance: 300m
Coaxial video connector: BNC-M
Twisted-pair video connector: Screw Interface
Compatible Format: PAL,NTSC,SECAM
Signal transmission band: 0-6MHz(-3db)
Anti-interference: >60db
Coaxial video interface protection: 4KV(common-mode)Per:IEC61000-4-5
Twisted-pair video transmission interface protection: 2KV(different-mode), 4KV(common-mode)Per:IEC61000-4-5
ESD:
1a contact discharge electricity level 3
1b air discharge electricity level 3
Per:IEC61000-4-2
MTBF: >10000H
Size(L*W*H): 50mm * 20mm * 15mm
Shell: ABS
Operating Temperature: -10-55°C
Storage Temperature: -20-70°C
Humidity: 0-95% (non-condensing)

Package include:
10 pairs UTP Transceiver
